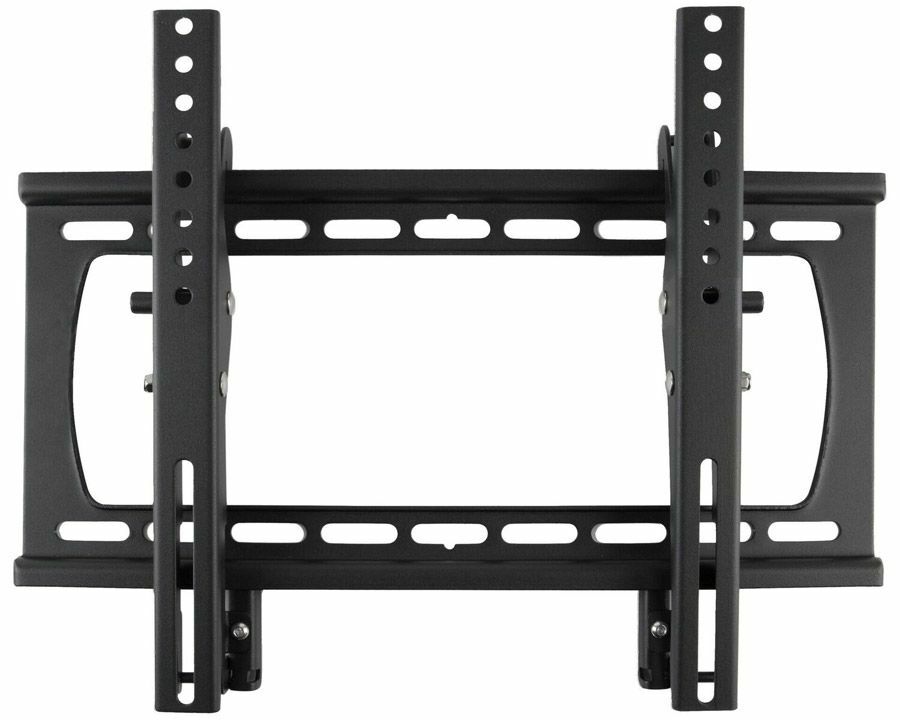

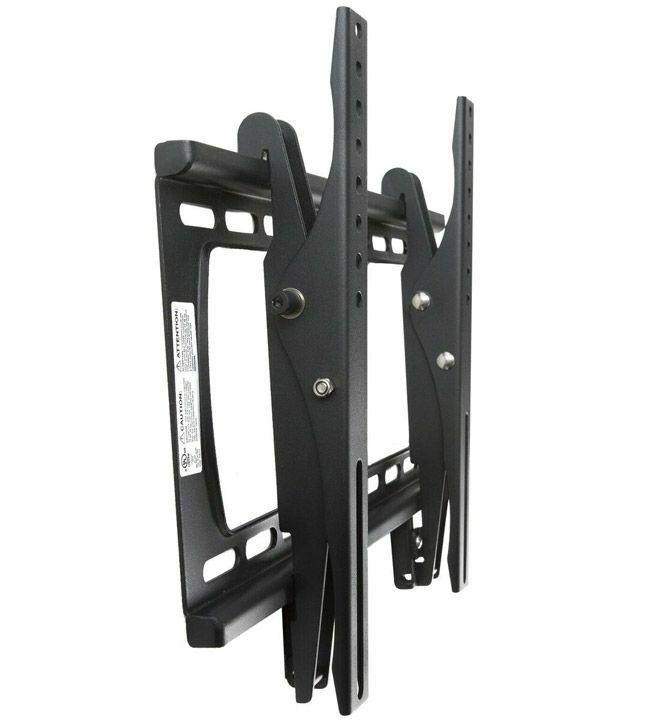

This resilient, all-weather tilt mount pairs perfectly with SunBriteTVs. Tilts 13-degrees forward to 8-degrees back.
Weatherproof Coating
This mount is primed with a dependable powder coating, as well as two layers of a durable, corrosion-resistant coating for added protection against scratches. Plus, stainless steel hardware means you’ll never have to worry about rust.
Post Install Leveling
We understand the pain of having to re-level an installed mount, so this mount includes post-install leveling screws for last minute adjustments.
Solid Construction
Underneath a beautiful black powder coat is solid steel, so you know that when you mount your TV, it’s there to stay.
Slimmed Down
Our wall-hugging mount features a low profile feel and minimal mounting depth of 2.25".
VESA compatible
100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 400x300
100 lb. weight capacity
Lifetime warranty
Product Description
This resilient, all-weather tilt mount pairs perfectly with SunBriteTVs. A durable steel construction, finished in an outdoor-rated coating, ensures this mount withstands even the harshest of elements without rusting. Plus, post-install leveling screws and lockable tabs make installation a breeze.
User-friendly wall mounting plate: The center bolt hole location includes a notch so you can drill into your surface for temporary hanging. It's reversible so there is no set top or bottom, which means no confusion. The wide mouth in the center allows for easy placement over a large Midi plate.

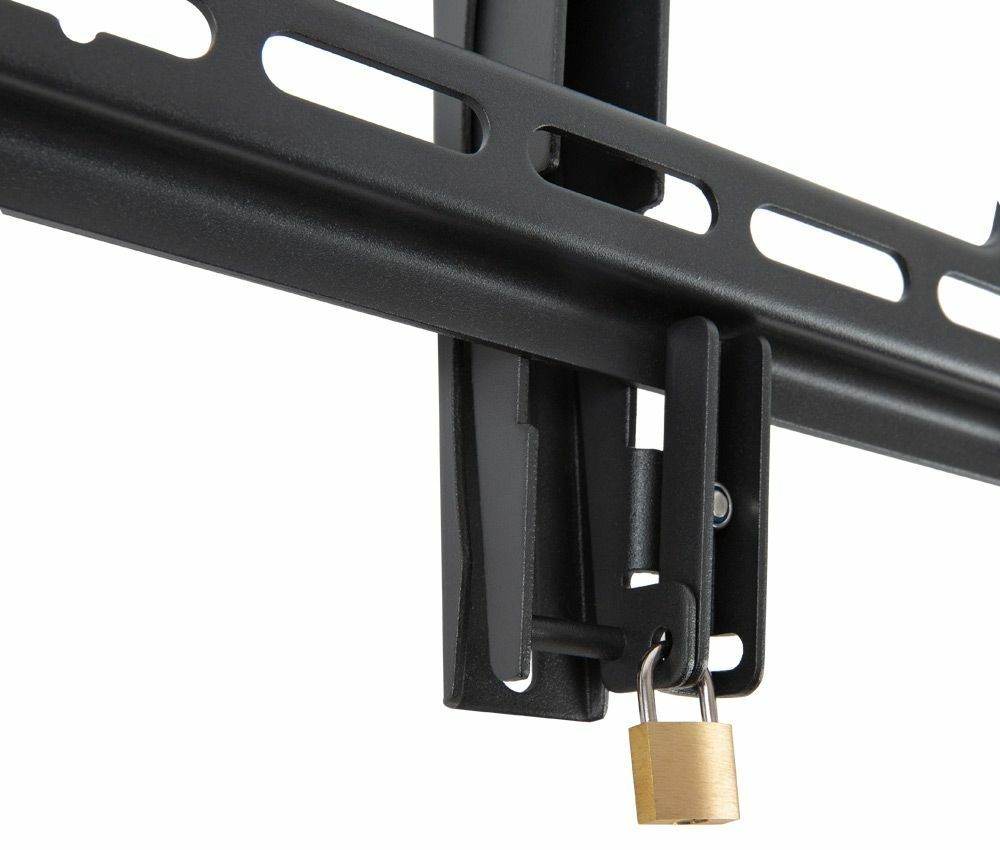

This SunBriteTV tilt mount includes LokTight™ rotating lockable tabs directly on the arms themselves. The lockable tabs keep the arms against the mount, eliminate easy lifting from curious kids, and allows for a locking device to be added for security
Spacers - For all Veranda Series TVs, spacers will be needed in order to accommodate the plug and media bay access behind the TV.
UL Listed
Strength & integrity are crucial ingredients in flat panel mounts. Rest assured we understand and continue to uphold our product quality by getting the most effective "guarantee-on-a-box" we can provide - UL approval.
Key Features
| Dimensions - Product | 19.3" x 14.37" x 2.3" |
|---|---|
| Dimensions - Shipping | 22.25" x 11" x 13" |
| Weight - Product | 6.2 lbs |
| Weight - Shipping | 9.5 lbs |
| Warranty | Lifetime |
| Distance Extended / Depth | 2.25" Profile |
| Distance Retracted | N/A |
| Roll | N/A |
| Swivel | N/A |
| Tilt | 13° Forward / 8° Back |
| Maximum TV Size | 43" |
| Minimum TV Size | 23" |
| VESA Mounting Pattern | 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 400x300 |
| Color | Black |
| Maximum Load Support | 100 lbs |
-
description
This resilient, all-weather tilt mount pairs perfectly with SunBriteTVs. Tilts 13-degrees forward to 8-degrees back.
Weatherproof Coating
This mount is primed with a dependable powder coating, as well as two layers of a durable, corrosion-resistant coating for added protection against scratches. Plus, stainless steel hardware means you’ll never have to worry about rust.
Post Install Leveling
We understand the pain of having to re-level an installed mount, so this mount includes post-install leveling screws for last minute adjustments.
Solid Construction
Underneath a beautiful black powder coat is solid steel, so you know that when you mount your TV, it’s there to stay.
Slimmed Down
Our wall-hugging mount features a low profile feel and minimal mounting depth of 2.25".
VESA compatible
100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 400x300
100 lb. weight capacity
Lifetime warranty -
overview
Product Description
This resilient, all-weather tilt mount pairs perfectly with SunBriteTVs. A durable steel construction, finished in an outdoor-rated coating, ensures this mount withstands even the harshest of elements without rusting. Plus, post-install leveling screws and lockable tabs make installation a breeze.
User-friendly wall mounting plate: The center bolt hole location includes a notch so you can drill into your surface for temporary hanging. It's reversible so there is no set top or bottom, which means no confusion. The wide mouth in the center allows for easy placement over a large Midi plate.
This SunBriteTV tilt mount includes LokTight™ rotating lockable tabs directly on the arms themselves. The lockable tabs keep the arms against the mount, eliminate easy lifting from curious kids, and allows for a locking device to be added for security
Spacers - For all Veranda Series TVs, spacers will be needed in order to accommodate the plug and media bay access behind the TV.
UL Listed
Strength & integrity are crucial ingredients in flat panel mounts. Rest assured we understand and continue to uphold our product quality by getting the most effective "guarantee-on-a-box" we can provide - UL approval. -
optionalaccessories
Key Features
Dimensions - Product 19.3" x 14.37" x 2.3" Dimensions - Shipping 22.25" x 11" x 13" Weight - Product 6.2 lbs Weight - Shipping 9.5 lbs Warranty Lifetime Distance Extended / Depth 2.25" Profile Distance Retracted N/A Roll N/A Swivel N/A Tilt 13° Forward / 8° Back Maximum TV Size 43" Minimum TV Size 23" VESA Mounting Pattern 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 400x300 Color Black Maximum Load Support 100 lbs -
specification
